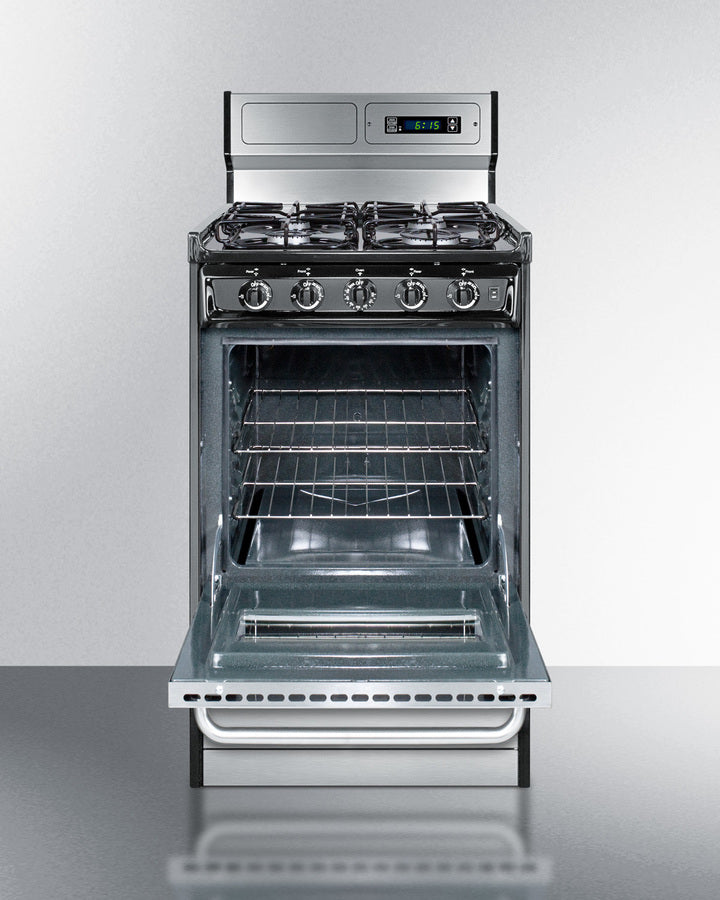

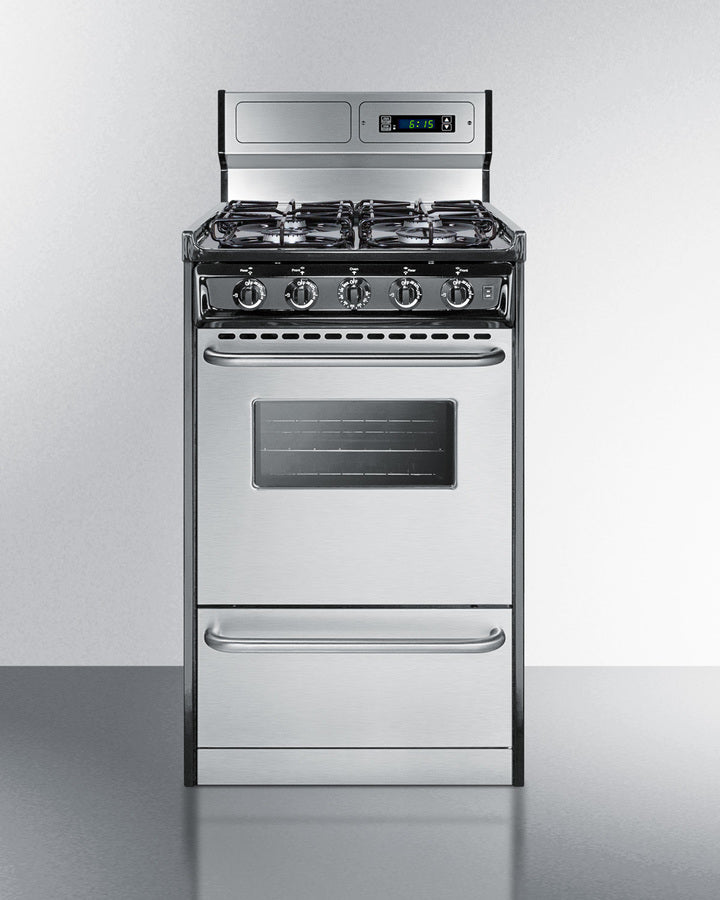

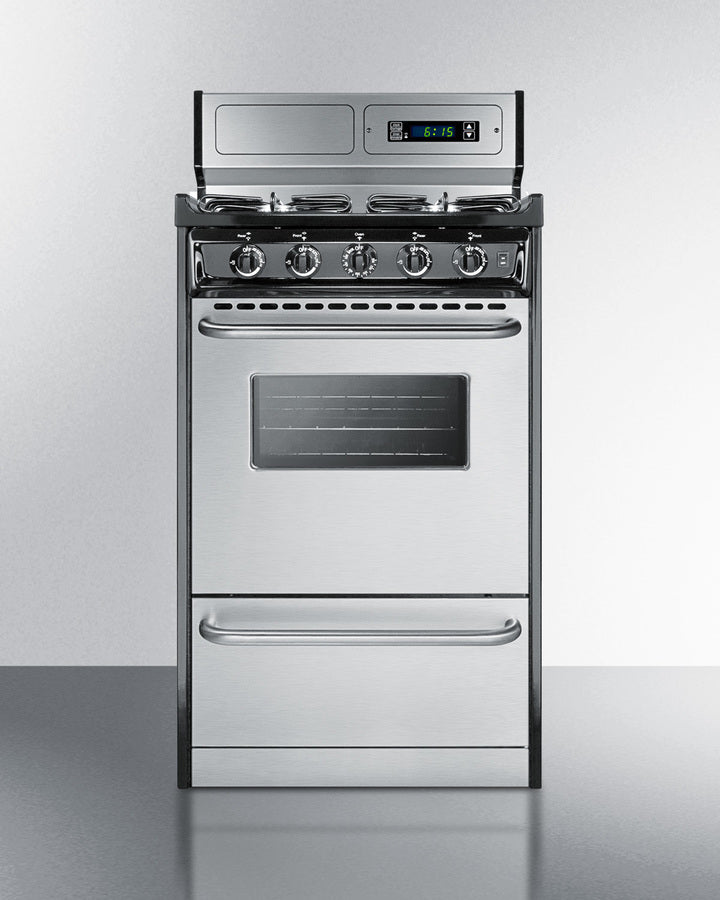

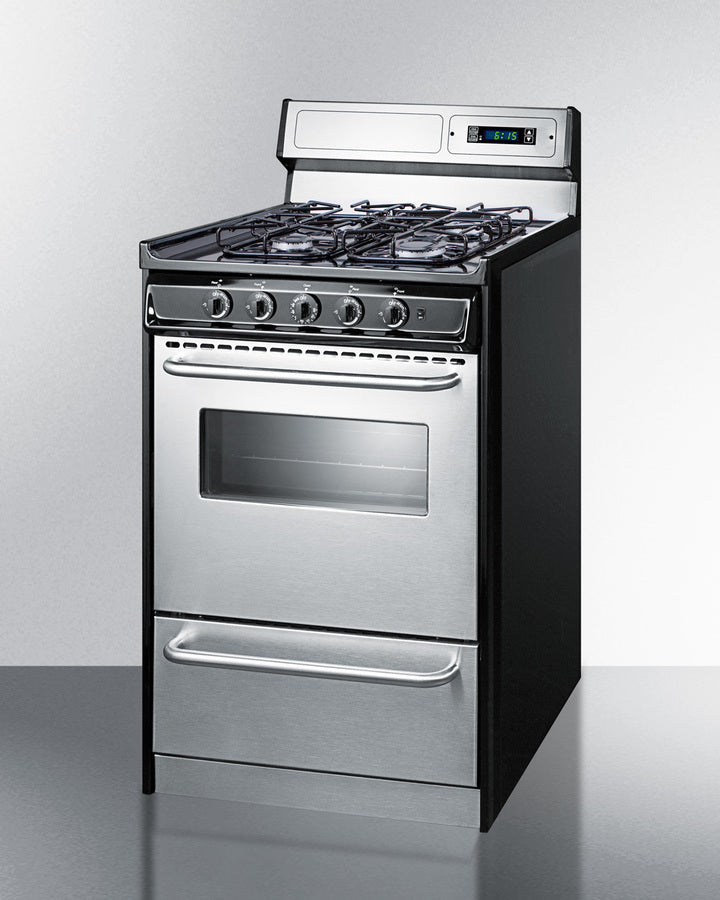

Summit Next 20" Wide Gas Range, Sealed Burners

DESCRIPTION

The TTM1307BKSW is 20" wide apartment-sized gas range with a generous 2.46 cu.ft porcelain oven interior that can fit large trays. Two adjustable oven racks are included. An oven window and on/off interior light allow you to easily keep watch over your cooking. The broiler is located below the oven in a drop-down compartment. Four sealed 9100 BTU gas burners accommodate most of your stovetop heating needs, with upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety.

Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces. The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts.

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP S2.

FEATURES
Made in the USA
Designed and constructed domestically

Slim 20 inch width
Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens

Four sealed 9100 BTU burners
Easy cleanup on boil-overs and accidental spills

Stainless steel finish
Doors and backguard are constructed from brushed stainless steel for modern luxury built to last

Professional towel bar handles
Curved handles in brushed stainless steel offer an easier grip in attractive style

Designed for natural gas
Set for use with natural gas connection. To convert for propane use, add Kit LP S2

Electronic ignition
Spark ignition system with a pre-installed 115V 3-prong cord

Oven window and interior lighting
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Deluxe backguard
8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer
Backguard includes clock and timer for added convenience

Upfront oven/burner controls
Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Recessed oven door
Smart design limits the depth and protects adjacent cabinets

Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment
Lower drop-down compartment for separate broiling with even heat distribution

Porcelain construction
Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

Removable burner caps
Burners include a removable cap for easy cleaning

Recessed surface
Smart design helps to contain spills

Removable oven door and range top
Allows for easier cleaning as needed

Broiler pan
Two-piece broiler pan included

Anti-tip bracket
Included for user installation to help prevent tipping

SPECIFICATIONS
Overview

• Nominal Height  -  44.0" (112 cm)
  Height of Cabinet  -  44.0" (112 cm)
  Nominal Width  -  20.0" (51 cm)
  Width  -  20.0" (51 cm)
  Nominal Depth  -  24.0" (61 cm)
  Depth -   24.0" (61 cm)
  Door  -  Stainless Steel
  Cabinet   - Black
  US Electrical Safety -   CSA
  Weight   - 135.0 lbs. (61 kg)
  Parts & Labor Warranty   - 1 Year

  Gas Range
  Ignition   - Spark
  LP Convertible  -  With Kit LP S2 Accessory
  Oven Capacity  -  2.46 cu.ft
  Cooktop Surface  -  Porcelain
  Burner Type   - Sealed
  Number of Burners  -  4
  Burner #1 BTU   - 9100.0
  Burner #2 BTU   - 9100.0
  Burner #3 BTU   - 9100.0
  Burner #4 BTU   - 9100.0
  Burner Controls  -  Dial
  Oven Controls  -  Dial
  Oven Light  -  Yes
  Cooking Timer  -  Yes
  Backguard  -  Yes
  Backguard Display   - Yes
  Cleaning Type -   Manual
  Oven Window   - Yes
  Oven Interior Height   - 14.0" (36 cm)
  Oven Interior Width   - 16.0" (41 cm)
  Oven Interior Depth   - 19.0" (48 cm)
  Broiler Location   - Below Oven
