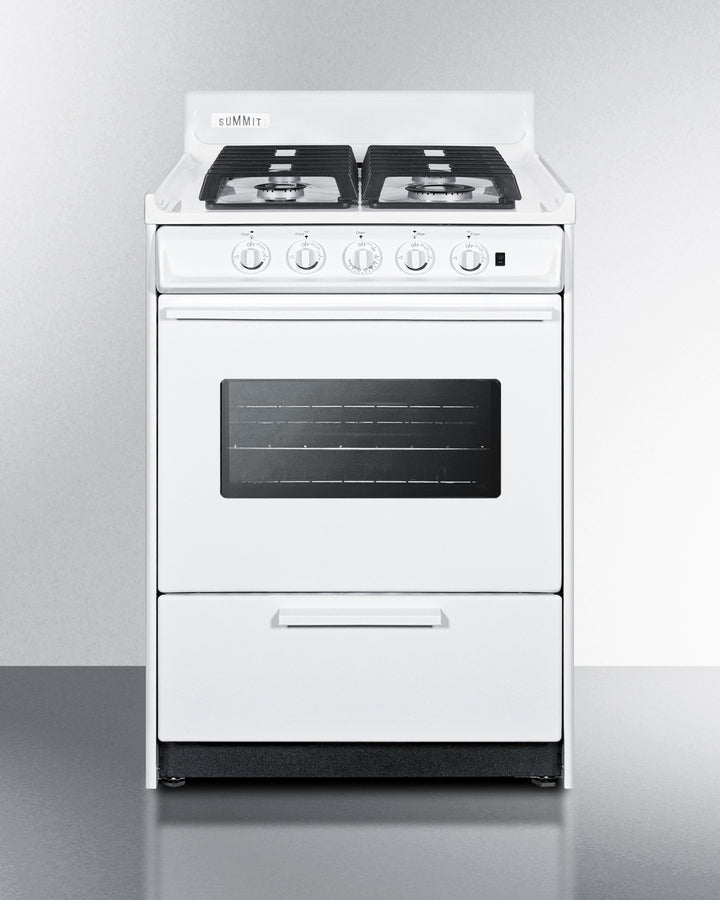

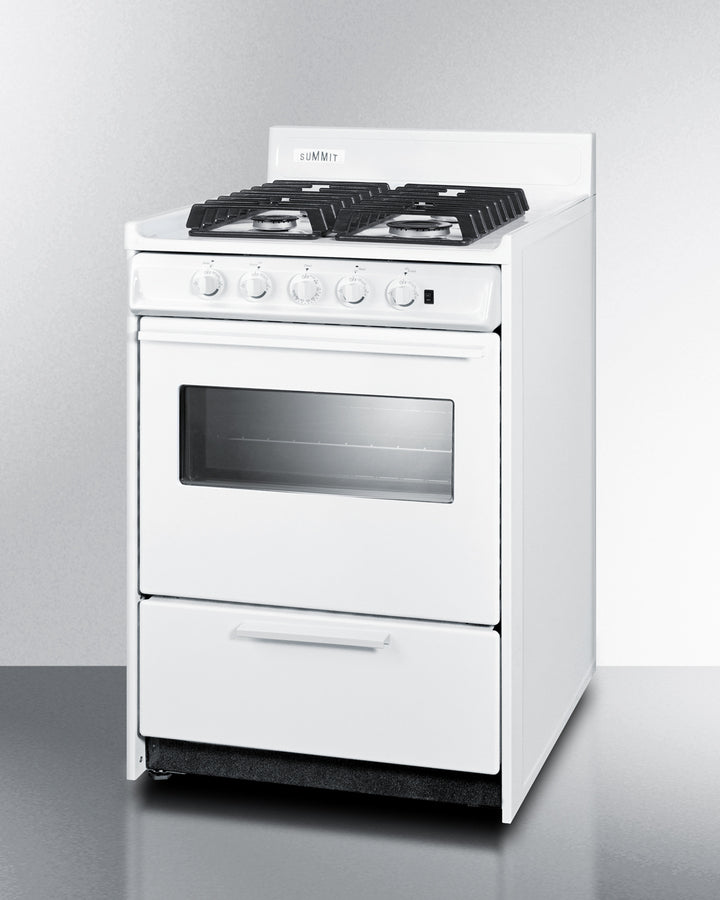

Summit 24" Wide Gas Range, Sealed Burners

DESCRIPTION

The WTM6107ISW is 24" wide apartment-sized gas range with a generous 2.92 cu.ft porcelain oven interior that can fit large trays. Two adjustable oven racks are included. This unit includes an oven window and interior light with an on/off switch. The broiler is located below the oven in a drop-down compartment. Four sealed gas burners offer safer and cleaner cooking, with a high output 12000 BTU burner for powerful heating conveniently located in the front right corner for easy access. Two 9100 BTU burners accommodate standard heating needs. This unit also includes a 5000 BTU  burner in the rear, an ideal design for simmering at lower power or keeping food warm without overcooking. Two sets of continuous cast iron grates are designed to hold up to heavy pots and pans. This unit features upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. It utilizes an electronic ignition system for added safety.

The WTM6107ISW comes in a classic white finish. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts.

This unit ships ready for natural gas connections. To use with propane, add the Kit LP S2.

FEATURES
24" Wide Gas Range
Slim-fitting sealed burner gas stove with large oven

Made in the USA
Designed and constructed domestically

Slim 24 inch width
Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens

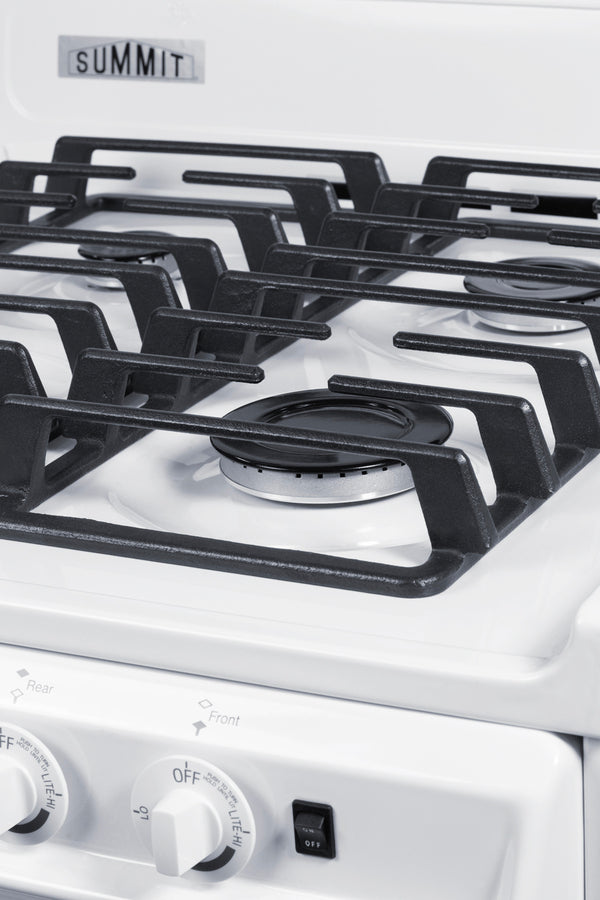

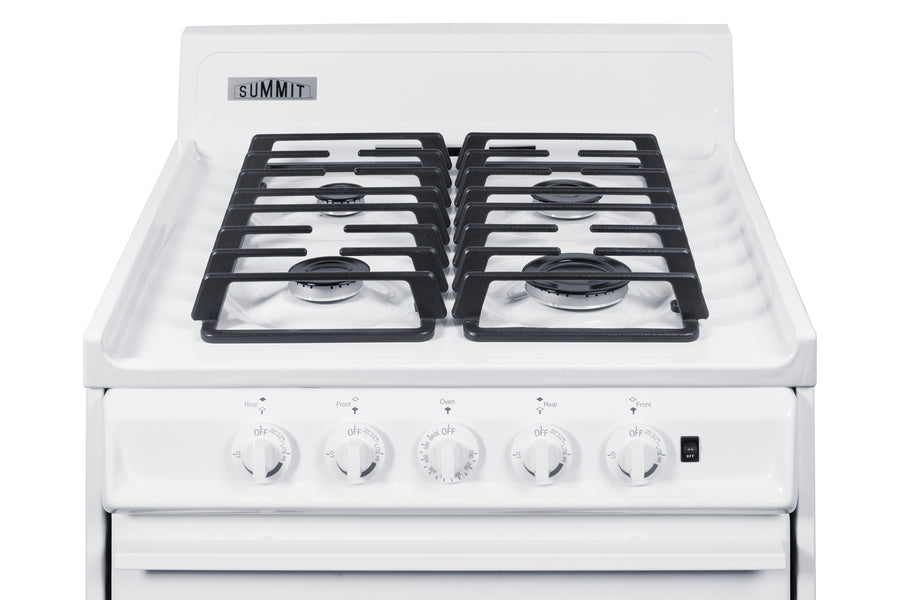

Cast iron grates
Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Four sealed burners
Easy cleanup on boil-overs and accidental spills

High output burner
Right front burner features 12,000 BTU output for powerful cooking

Low output simmer burner
Rear left burner reaches a maximum of 5000 BTUs, ideal for simmering sensitive items or keeping dishes warm without overheating

Designed for natural gas
Set for use with natural gas connection. To convert for propane use, add Kit LP S2

Electronic ignition
Spark ignition system with a pre-installed 115V 3-prong cord

Oven window and interior lighting
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Upfront oven/burner controls
Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Recessed oven door
Smart design limits the depth and protects adjacent cabinets

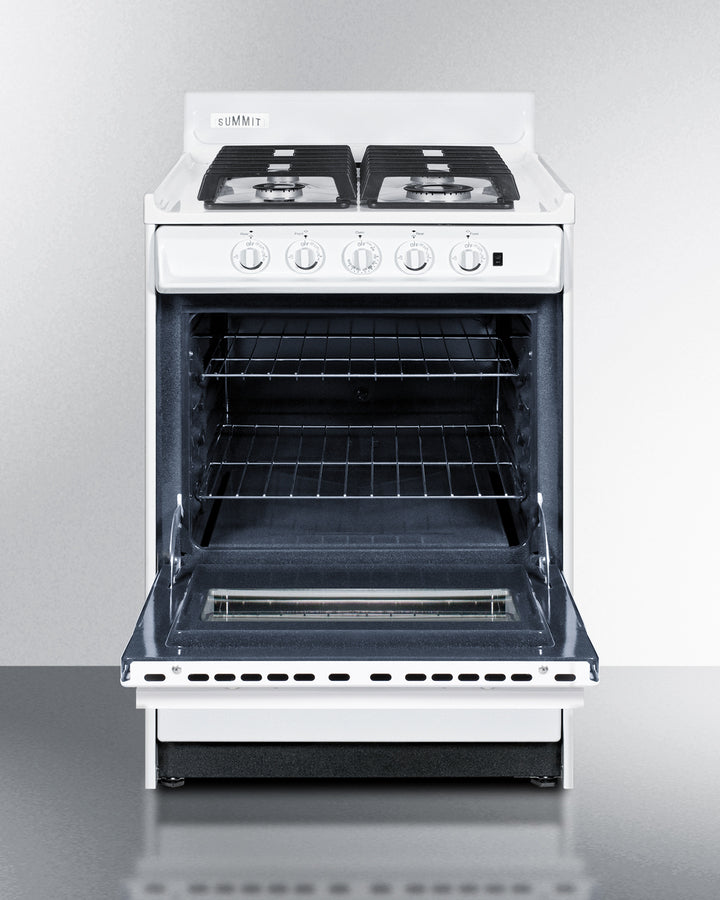

Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment
Lower drop-down compartment for separate broiling with even heat distribution

Porcelain construction
Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

Removable burner caps
Burners include a removable cap for easy cleaning

Recessed surface
Smart design helps to contain spills

Removable oven door and range top
Allows for easier cleaning as needed

Broiler pan
Two-piece broiler pan included

White exterior finish
Classic design in a clean white finish to match any kitchen

Anti-tip bracket
Included for user installation to help prevent tipping

SPECIFICATIONS
Overview

• Nominal Height  -  40.0" (102 cm)
  Height of Cabinet   - 40.0" (102 cm)
  Nominal Width   - 24.0" (61 cm)
  Width  -  24.0" (61 cm)
  Nominal Depth  -  24.0" (61 cm)
  Depth  -  24.0" (61 cm)
  Door  -  White
  Cabinet   - White
  US Electrical Safety  -  CSA
  Weight   - 135.0 lbs. (61 kg)
  Parts & Labor Warranty   - 1 Year

  Gas Range
  Ignition   - Spark
  LP Convertible  -  With Kit LP S2 Accessory
  Oven Capacity  -  2.92 cu.ft
  Cooktop Surface -   Porcelain
  Burner Type  -  Sealed
  Number of Burners  -  4
  Grate Material   - Cast iron
  Burner #1 BTU  -  12000.0
  Burner #2 BTU   - 9100.0
  Burner #3 BTU   - 9100.0
  Burner #4 BTU  -  5000.0
  Burner Controls  -  Dial
  Oven Controls  -  Dial
  Oven Light  -  Yes
  Backguard   - Yes
  Cleaning Type  -  Manual
  Oven Rack Qty -   2
  Oven Window   - Yes
  Oven Interior Height   - 14.0" (36 cm)
  Oven Interior Width  -  19.0" (48 cm)
  Oven Interior Depth  -  19.0" (48 cm)
  Broiler Location  -  Below Oven
