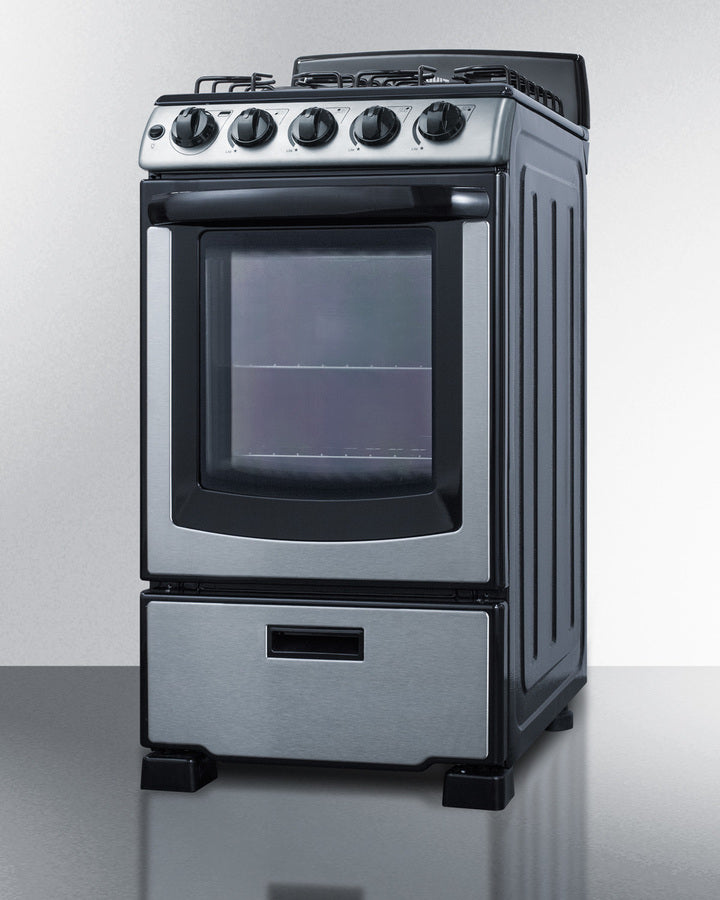

Summit Next 20" Wide Gas Range

DESCRIPTION
The slim-fitting gas range made in North America brings quality and value to space-challenged kitchens.

The PRO201SS is sized at just 20" wide for an easy fit in smaller kitchen spaces. It comes in a stainless steel and black finish for a professional look to match a variety of styles. The stainless steel oven door includes a large window and easy-grip handle for cooking convenience.This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The control panel includes upfront push-to-turn burner knobs for added safety.

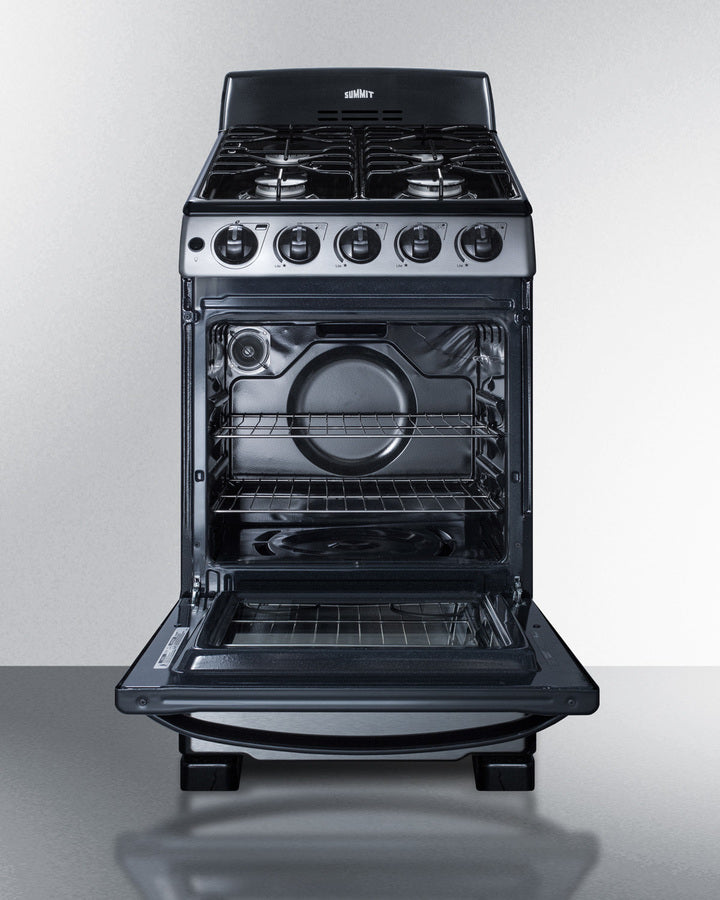

Inside, the PRO201SS features a 2.3 cu.ft. porcelain oven. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment. We include a two-piece broiler pan with lid. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion.

With its clean look and unique size, the PRO201SS is the ideal gas range for apartment and small home kitchens.

FEATURES

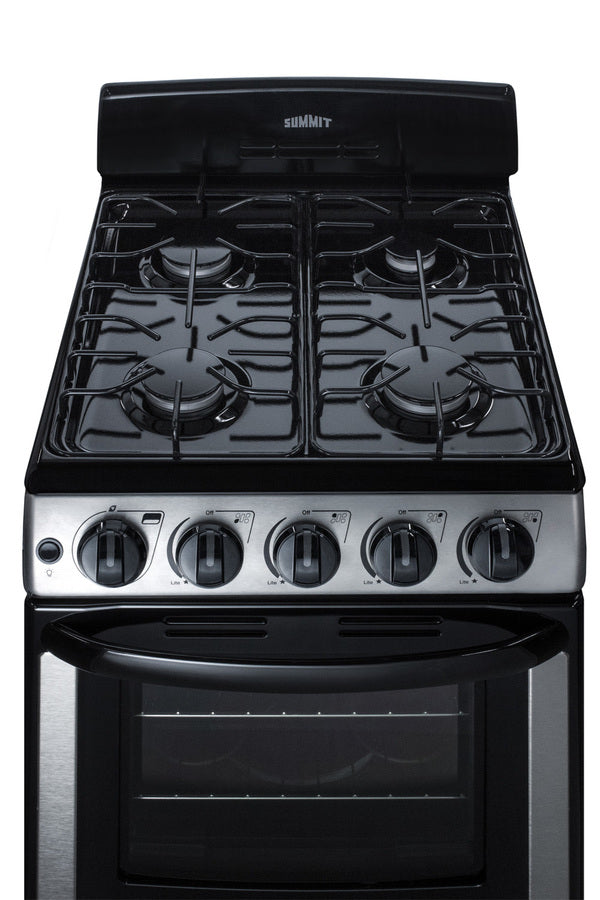

Sealed burners
Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

20" Width
Perfectly sized for apartments and smaller kitchens

LP Convertible
Includes a kit that allows the unit to be converted from natural to LP gas after purchase

Stainless steel finish
Door, broiler, and control panel, and handle feature a stainless steel finish for a professional look

Oven window with light
Easier monitoring of your cooking with an oven window and on/off light

Continuous enamel grates
Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans

High output burner
Front right burner features 12,500 BTU output for powerful cooking

Two semi-rapid burners
Two left burners operate at 9,500 BTU to handle most heating needs

Low output burner
Rear right burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Upfront controls
Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Backguard
High backing prevents stovetop contents from splashing up or boiling over and staining walls

Porcelain construction
Oven interior features high quality porcelain construction for long-lasting durability

Slide-out oven racks
Two racks with four glide positions for flexible cooking

Drop-down broiler compartment
Broil food in a separate bottom section with heat that spreads evenly from the top down

Push-to-turn controls
Burner knobs require a small amount of force to turn on for added protection against accidents

Electronic ignition
Spark ignition for added safety

ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

Power cord included
Standard 3-pronged 115V cord included for the electronic ignition

SPECIFICATIONS
Overview

• Nominal Height  -  42.0" (107 cm)
  Height of Cabinet  -  42.0" (107 cm)
  Nominal Width  -  20.0" (51 cm)
  Width  -  19.5" (50 cm)
  Nominal Depth  -  25.0" (64 cm)
  Depth  -  24.25" (62 cm)
  Depth with Handle  -  26.5" (67 cm)
  Depth with door at 90°   - 44.0" (112 cm)
  Door   - Stainless Steel
  Cabinet  -  Black
  US Electrical Safety  -  CSA
  Canadian Electrical Safety  -  CSA-C
  Voltage/Frequency  -  115 V AC/60 Hz
  Weight   - 97.0 lbs. (44 kg)
  Parts & Labor Warranty   - 1 Year

  Gas Range
  Ignition -   Spark
  LP Convertible   - Yes
  Oven Capacity  -  2.3 cu.ft
  Cooktop Surface  -  Porcelain
  Burner Type  -  Sealed
  Number of Burners   - 4
  Grate Material  -  Porcelain Enamel
  Burner #1 BTU  -  12000.0
  Burner #2 BTU  -  9500.0
  Burner #3 BTU   - 5000.0
  Burner #4 BTU  -  9500.0
  Burner Controls  -  Dial
  Oven Controls  -  Dial
  Oven Light  -  Yes
  Backguard  -  Yes
  Cleaning Type  -  Manual
  Oven Rack Qty  -  2
  Oven Window  -  Yes
  Oven Interior Height   - 15.25" (39 cm)
  Oven Interior Width -   14.5" (37 cm)
  Oven Interior Depth  -  17.5" (44 cm)
  Broiler Location   - Below Oven
