Summit 24" Wide Gas Range

DESCRIPTION
The slim-fitting gas range made in North America brings quality and value to space-challenged kitchens.

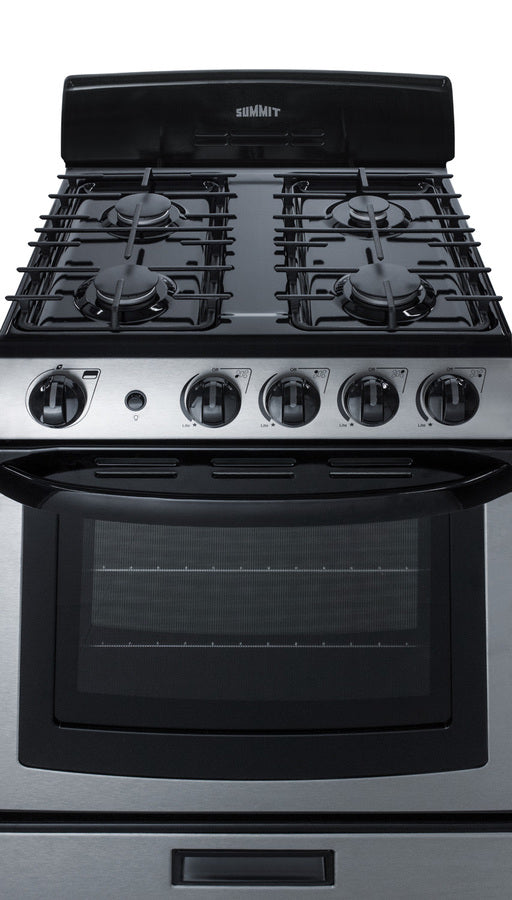

The PRO247SS is sized at just 24" wide for an easy fit in smaller kitchen spaces. The front manifold, oven door, and broiler front feature a stainless steel finish, with a black trimmed oven window, handle, and backguard for a modern look. The oven includes a large window, interior light, and easy-grip handle for cooking convenience.This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. Two sets of continuous grates feature a lightweight but durable cast iron design. The control panel includes upfront push-to-turn burner knobs for added safety.

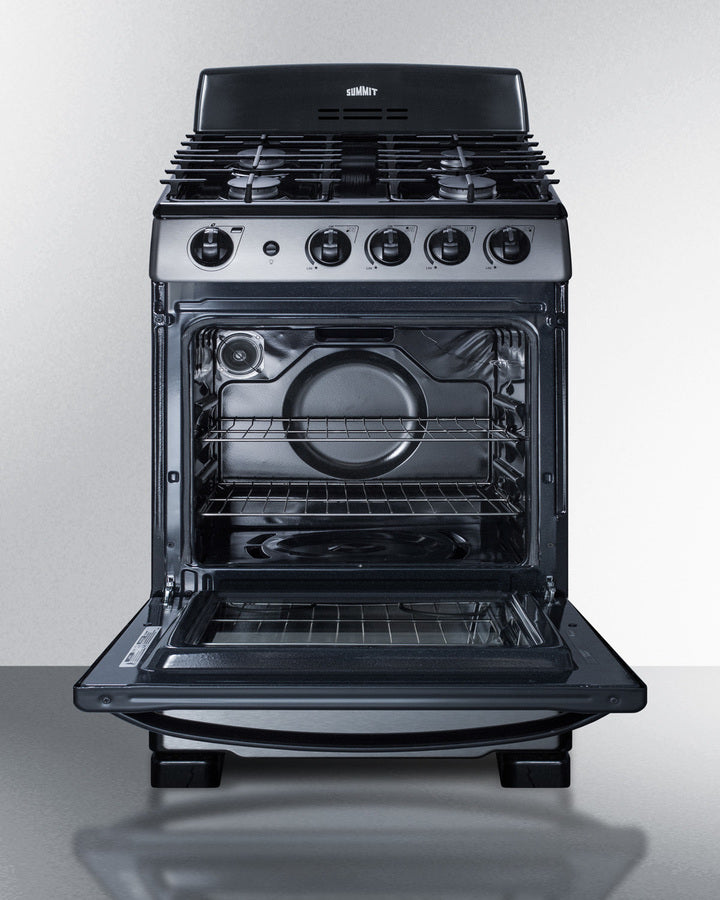

Inside, the PRO247SS features a 2.9 cu.ft. porcelain oven. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment with a convenient pocket handle. We include a two-piece broiler pan with lid. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion.

With its clean look and unique size, the PRO247SS is the ideal gas range for apartment and small home kitchens.

FEATURES
Sealed burners
Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

24" Width
Perfectly sized for apartments and smaller kitchens

LP Convertible
Unit is set for natural gas but can be converted aftermarket with the included LP kit

Stainless steel finish
Door, broiler, and control panel, and handle feature a stainless steel finish for a professional look

Oven window with light
Easier monitoring of your cooking with an oven window and on/off light

Cast iron grates
Two sets of continuous cast iron burner grates offer durable cooking with a lightweight feel for easier cleaning

High output burner
Front right burner features 12,00 BTU output for powerful cooking

Two semi-rapid burners
Two left burners operate at 9,500 BTU to handle most heating needs

Low output burner
Rear right burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Upfront controls
Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Porcelain construction
Oven interior features high quality porcelain construction for long-lasting durability

Slide-out oven racks
Two racks with four glide positions for flexible cooking

Safety brake system for oven racks
Sliding racks will stay in your oven with special brake mechanism

Broiler compartment
Drop-down lower compartment offers the ideal conditions for broiling

Push-to-turn controls
Burner knobs require a small amount of force to turn on for added protection against accidents

Electronic ignition
Spark ignition for added safety

Broiler pan included
Two-piece broiler pan with lid included with each range

ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

High backguard
Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included
Standard 3-pronged 115V cord included for the electronic ignition

Anti-tip bracket
Safety feature included for user installation to help prevent accidents

SPECIFICATIONS
Overview

• Nominal Height  -  42.0" (107 cm)
  Height of Cabinet   - 42.0" (107 cm)
  Nominal Width -   24.0" (61 cm)
  Width  -  23.63" (60 cm)
  Nominal Depth   - 25.0" (64 cm)
  Depth   - 24.5" (62 cm)
  Depth with Handle  -  25.75" (65 cm)
  Depth with door at 90° -   40.25" (102 cm)
  Door  -  Stainless Steel
  Cabinet  -  Black
  US Electrical Safety  -  CSA
  Canadian Electrical Safety  -  CSA-C
  Voltage/Frequency  -  115 V AC/60 Hz
  Weight  -  110.0 lbs. (50 kg)
  Parts & Labor Warranty   - 1 Year

  Gas Range
  Ignition   - Spark
  LP Convertible   - Yes
  Oven Capacity  -  2.9 cu.ft
  Burner Type   - Sealed
  Number of Burners  -  4
  Grate Material  -  Cast Iron
  Burner #1 BTU  -  12000.0
  Burner #2 BTU  -  9500.0
  Burner #3 BTU  -  5000.0
  Burner #4 BTU  -  9500.0
  Burner Controls  -  Dial
  Oven Controls  -  Dial
  Oven Light   - Yes
  Backguard   - Yes
  Cleaning Type -   Manual
  Oven Rack Qty -   2
  Oven Window  -  Yes
  Broiler Location   - Below Oven
