Summit 24" Wide Bottom Freezer Refrigerator

DESCRIPTION
This thin-line series of ENERGY STAR-certified counter-depth bottom freezer refrigerators conserves energy and space but adds quality and function with innovative features, convenient sizes, and energy-efficient operation. At 23.25" deep and 23.5" wide, the FFBF235PL offers 10.8 cu. Ft. of storage capacity, ideal for space-challenged kitchens with complete refrigeration needs.

Reversible doors allow you to adjust the door swing to best suit your space. The doors and drawers come in a stainless steel look with a horizontal grain, offering a luxurious appearance with fingerprint-resistant convenience, paired with two handles in the same finish. The side cabinet features a textured gray finish. The unit features a sealed back and right-angle plug for added space savings in smaller kitchens.

Inside, the FFBF235PL comes fully featured for maximum storage convenience with frost-free operation ideal for minimum maintenance. The refrigerator section includes adjustable shelves made from safety glass for durability and easy cleaning. An innovative touch control system lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. Super Freeze setting allows you to rapidly cool the freezer section, which is ideal for newly loaded groceries. The unit is laboratory-tested to ensure quiet operation at under 33 decibels.

Our FFBF235PL includes a large humidity-controlled crisper drawer and a second meat drawer that can hold colder temperatures for deli items or easily convert to a regular crisper. The large freezer section features one shelf and two slide-out storage drawers with clear plastic fronts. These fronts help to protect your frozen goods from warmer ambient temperatures when the door is opened.

With its elegant design, unique size, and complete storage capacity, the FFBF235PL is the perfect energy-efficient addition to any kitchen looking to bring true quality, modern style, and energy savings in a smaller footprint than standard household refrigerators.

FEATURES
Counter Depth Bottom Freezer Refrigerator
10.8 cu. Ft. Refrigerator-freezer in a unique 23.5" W x 23.25" D fit is ideal for smaller kitchens and apartments

ENERGY STAR certified
This unit is recognized as an efficient appliance by ENERGY STAR standards

No-frost operation
Frost-free operation for minimum user maintenance

Stainless steel look
Doors offer the look of stainless steel complete with a horizontal grain but the easier cleanability of a fingerprint-resistant steel finish

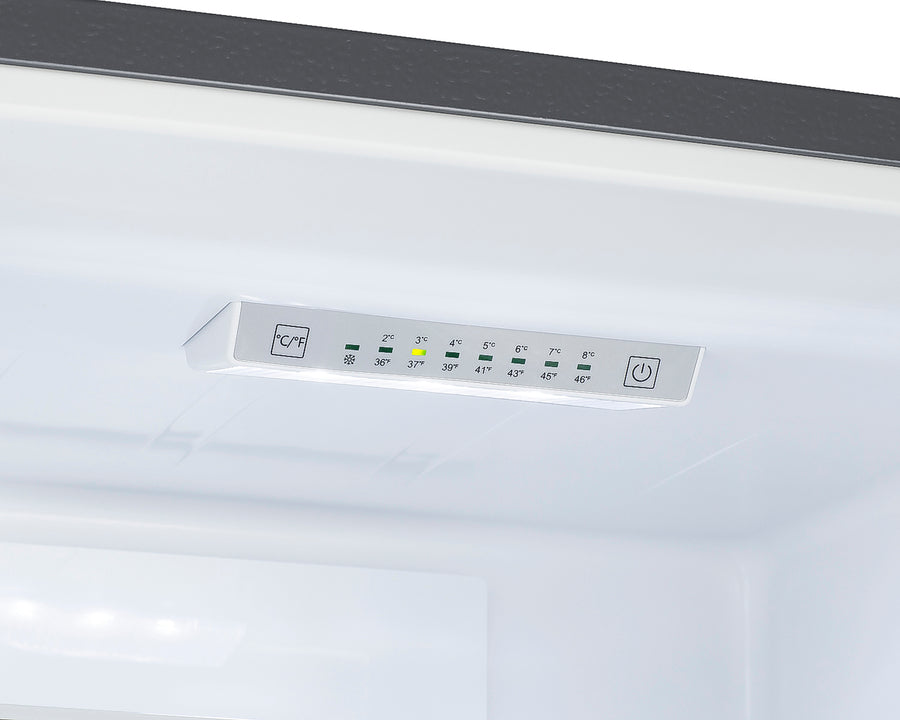

Digital controls
Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator temperature at the touch of a button

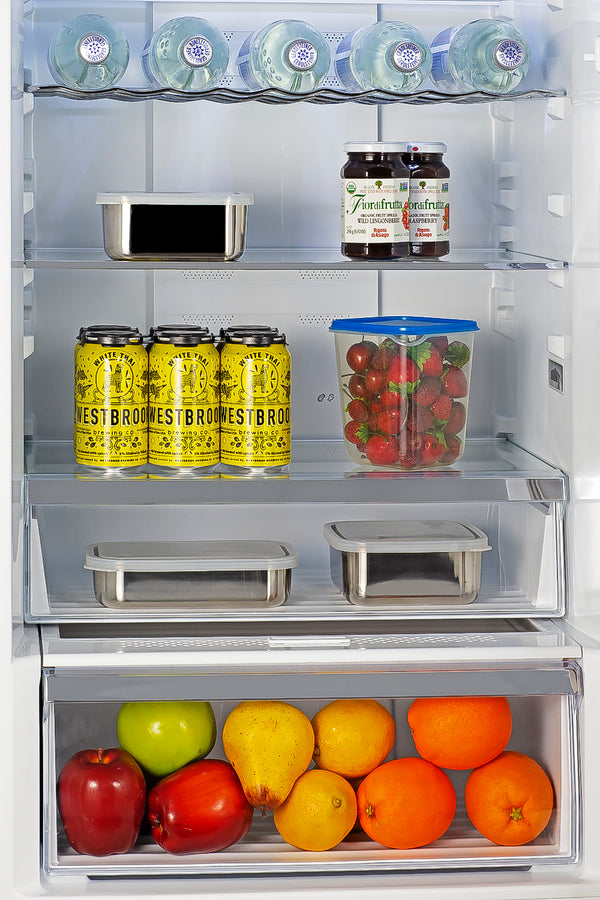

Humidity controlled crisper
Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables

Convertible crisper/deli drawer
Additional crisper allows you to store meats and deli items at a slightly colder temperature or convert to a second crisper using the easy slide control

Adjustable glass shelves
Steel-trimmed shelves users can rearrange to accommodate all shapes and sizes or remove shelves for a simple clean-up

Adjustable door storage
Store tall bottles and condiments right on the door for convenient access

Scalloped steel rack
The unit features one adjustable scalloped rack to store and chill your favorite beverages

Interior LED lighting
Refrigerator section includes automatic LED lighting for an energy-efficient view

Quiet operation
Runs at just 32.9 dB for a quiet performance that won't disturb anyone in your kitchen

Intensive freezing function
Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature

Bottom freezer drawers
Two slide-out freezer drawers include clear plastic fronts to maximize convenience and accessibility

Easy-to-use ice tray included
Includes a convenient ice tray with a storage bin and crank system for easier ice retrieval

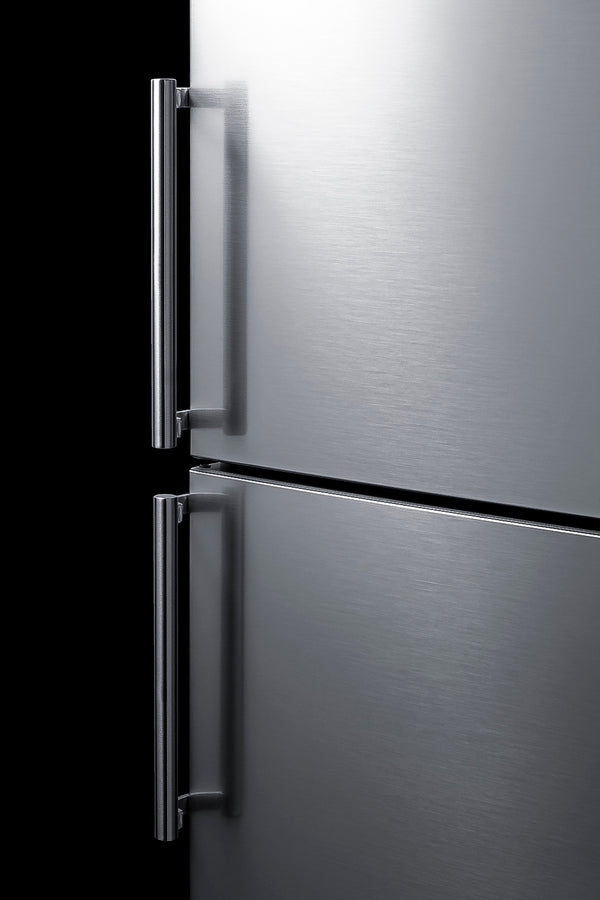

Designer handles
Brushed steel handles offer a modern look for the refrigerator

Fully finished cabinet
Textured cabinet in an attractive deep gray finish allows the unit to be used freestanding

Sealed back
Space-saving convenience with easier cleanability

Reversible doors
User-reversible door swing for added flexibility

Right angle plug
The right-angle design allows you to plug the unit in flush against the wall socket with no need to add extra depth

100% CFC free
Environmentally friendly design without ozone-damaging chemicals

CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SPECIFICATIONS

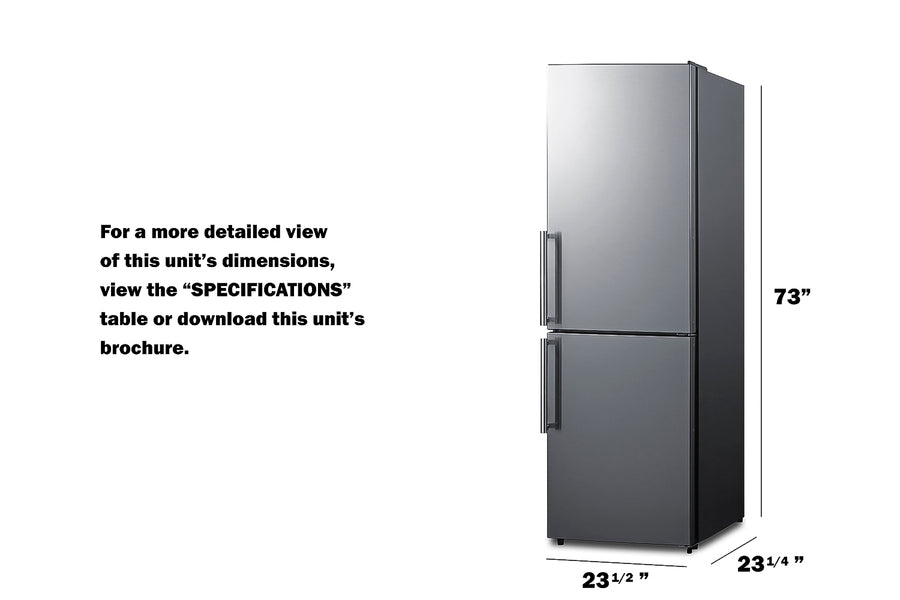

Overview

• Nominal Height  -  73.0" (185 cm)
  Height of Cabinet   - 72.5" (184 cm)
  Height to Hinge Cap  -  73.0" (185 cm)
  Nominal Width  -  24.0" (61 cm)
  Width  -  23.5" (60 cm)
  Nominal Depth   - 24.0" (61 cm)
  Depth  -  23.25" (59 cm)
  Depth with Handle  -  25.75" (65 cm)
  Depth with door at 90°  -  44.63" (113 cm)
  Capacity   - 10.8 cu.ft. (306 L)
  Defrost Type  -  Frost-Free/Automatic
  Door  -  Stainless Look
  Cabinet  -  Gray
  US Electrical Safety  - CSA
  Canadian Electrical Safety  -  CSA-C
  Energy Usage/Year  -  391.0kWh/year
  Amps   - 1.3
  Voltage/Frequency   - 115 V AC/60 Hz
  Weight   - 135.0 lbs. (61 kg)
  Parts & Labor Warranty   - 1 Year
  Compressor Warranty   - 5 Years

  Refrigerator-Freezer
  Door Swing   - RHD
  Reversible  -  Yes
  Adjustable Shelves  -  Yes
  Interior Drawers  -  Yes
  Drawer Qty  -  4
  Crisper Qty  -  2
  Crisper Finish  -  Transparent
  Crisper Cover   - Plastic
  Wine Bottle Shelving   - Yes
  Interior Light  -  Yes
  Refrigerator - Interior Height   - 37.0" (94 cm)
  Refrigerator - Interior Width   - 20.5" (52 cm)
  Refrigerator - Interior Depth   - 17.75" (45 cm)
  Refrigerator - Capacity  -  7.35 cu.ft
  Refrigerator - Shelf Type  -  Glass and Scalloped
  Refrigerator - Shelf Qty  -  3
  Refrigerator - Full Door Shelves   - 2
  Freezer - Interior Height  -  26.75" (68 cm)
  Freezer - Interior Width  -  17.0" (43 cm)
  Freezer - Interior Depth   - 14.0" (36 cm)
  Freezer - Capacity   - 3.43 cu.ft
  Freezer - Shelf Type -   Drawers
  Thermostat Type  -  Digital
  Fan Type  -  Interior
  Refrigerant Type  -  R600a
  Refrigerant Amount   - 1.58 oz.
  High Side PSI  -  250.0
  Low Side PSI   - 88.0
  Level Legs  -  2
  Interior Height - Drawer 1  -  5.5" (14 cm)
  Interior Width - Drawer 1  -  20.5" (52 cm)
  Interior Depth - Drawer 1   - 12.0" (30 cm)
  Interior Height - Drawer 2  -  8.0" (20 cm)
  Interior Width - Drawer 2  -  20.5" (52 cm)
  Interior Depth - Drawer 2  -  16.5" (42 cm)
  Interior Height - Drawer 3  -  9.5" (24 cm)
  Interior Width - Drawer 3  -  17.0" (43 cm)
  Interior Depth - Drawer 3  -  12.75" (32 cm)
  Interior Height - Drawer 4 -   9.0" (23 cm)
  Interior Width - Drawer 4   - 17.0" (43 cm)
  Interior Depth - Drawer 4   - 8.5" (22 cm)
  Compressor Step Height   - 10.0" (25 cm)
  Compressor Step Width  -  17.0" (43 cm)
  Compressor Step Depth   - 5.0" (13 cm)
  Sound Level  -  32.9 dB
