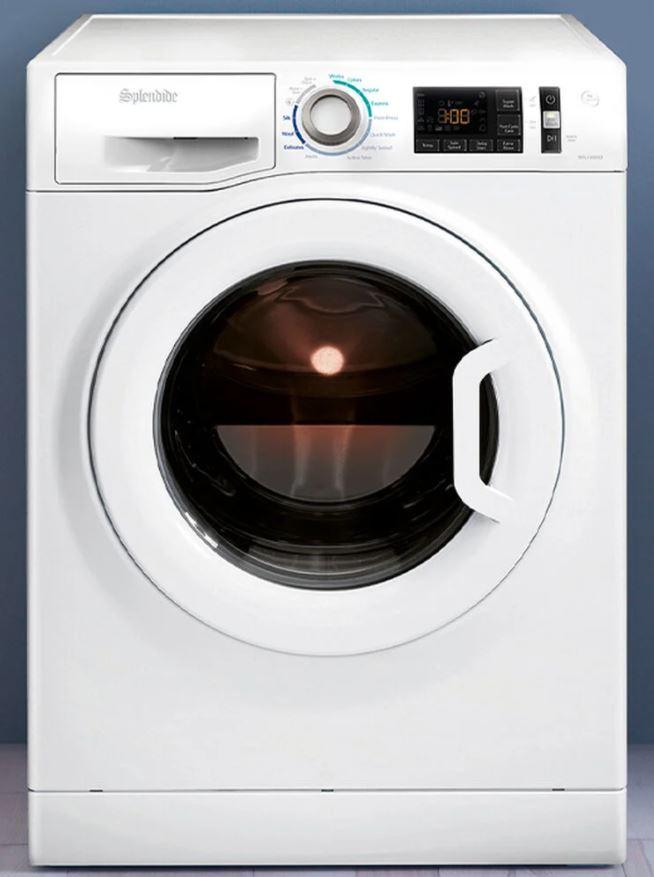

WFL2500X Stackable Washing Machine by Splendide

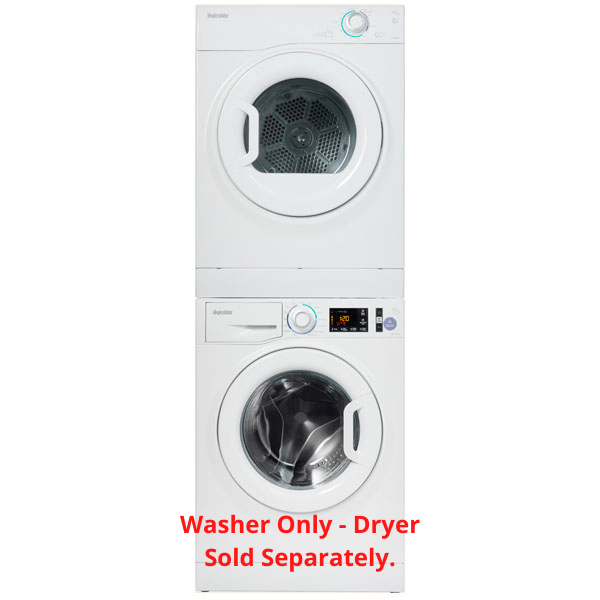

The Splendide WFL2500X is the current-generation compact front-load washer built for tiny houses, RVs, boats and small apartments. It fits a 24-inch closet or under-counter space, draws only 6 amps, and packs a 2.3 cu. ft. stainless drum with 15 wash cycles. Pair it with the Splendide DV1725X dryer and the SK04 stack kit to build a full laundry centre in a 24-inch footprint.
Why people choose the WFL2500X
- One-touch winterization - purpose-built for RV and seasonal use, helps prevent freeze damage
- Lowest amp draw in its class - 6 amps, so it plays nicely with limited off-grid and shore power
- 1200 rpm max spin - pulls more water out, so drying takes less time and less energy
- 2.3 cu. ft. stainless steel drum - larger loads, fewer cycles
- 15 wash cycles and 7 touch options - Tub Clean, Quick Wash, Heavy Soil, Steam, Extra Rinse, Fast+, Child Lock and more
- Optional WiFi remote control - start, monitor and get real-time status and time remaining
- Quiet operation - added insulation and sound dampening for close quarters
- RV approved - cULus listed for closet installation, meets RVIA 1192
- Meets Energy Star criteria
WFL2500X Specifications
| Cabinet dimensions | 33-1/8"H x 23-1/2"W x 23-1/4"D |
| Depth with door open | 40-7/8" |
| Stacked height (washer + DV1725X dryer with SK04 kit) | 66-3/4" |
| Wash capacity | 2.3 cu. ft. |
| Max spin speed | 1200 rpm |
| Water usage | 7.5 - 16 gallons per load |
| Water pressure | 7.5 - 145 psi |
| Electrical | 120V / 60Hz / 6 amp (15 amp separate circuit recommended) |
| Total power | 600 W |
| Weight | 159 lbs |
| Door | Left hinge |
| Certification | cULus, RVIA 1192, Energy Star criteria |
| Warranty | 1 year RV parts and labour (extendable to 2 years) |
Installation notes
- Floor must be solid, level and support at least 280 lbs
- Closet clearances: 1/4" sides, 1/2" top, 1/4" rear, 1/4" front (alternative closet spec: 0" sides, 2-3/4" top, 5/8" rear)
- Standpipe drain: 1-1/4" minimum diameter, 7 GPM carry-away, top of standpipe 25" to 34" above the bottom of the washer
- Included: two water inlet hoses, flexible drain hose, U-clamp, 5 ft electrical cord and manuals
- Optional accessories: SK04 stack kit, PI22/PI24 drain pan, MK01 SecureFit brackets, all-natural HE laundry powder
Manuals and documents
- WFL2500X Owner's Manual and Installation Instructions
- WFL2500X Quick Guide
- WFL2500X / DV1725X Data Sheet (dimensions and clearances)
- SK04 Stack Kit Instructions
Not sure it will fit your space? Call us on 888-467-5447 and we will walk through your dimensions with you before you order.
Questions & Answers
Have a Question?
-
Are these both washer & dryer energy star rated?
Yes the washer and dryer are energy star rated.
