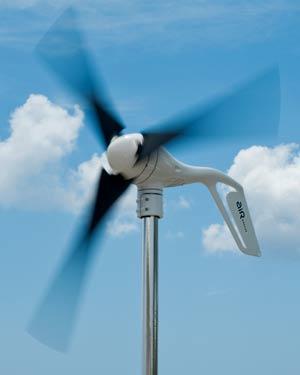

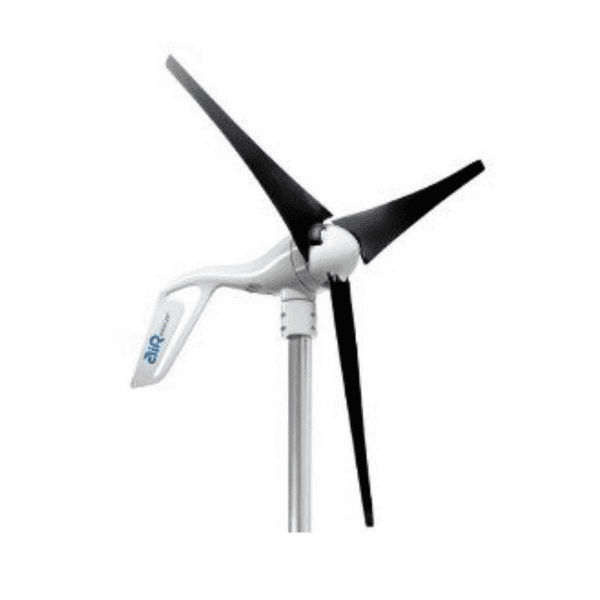

The Air Breeze Wind Turbine by Ryse Energy
The Air Breeze by Ryse Energy delivers when you need energy. A versatile turbine that you can count on in challenging conditions.
This field-proven unit is engineered for battery-charging applications in coastal to desert to Arctic environments. It delivers the energy you need for communications, offshore structures, sailing or remote monitoring, to name a few. With optimized electronic controls, AIR Breeze provides energy quietly and efficiently.
- Corrosion resistant, aircraft quality paint with a marine grade O-ring seal and stainless steel fasteners, ensuring durability in challenging conditions.
- Pair with solar PV for redundant energy production year-round.
- Lightweight design is simple and easy-to-install; an integrated controller for plug-and-play operation.
- Produces 40 kWh of energy per month generating energy in a wide range of wind speeds.
- Advanced microprocessor technology for superior performance and high wind protection without mechanical braking.
Ryse Energy Air Breeze Specifications
| Energy | Approx. 40 kWh/mo at 5.8 m/s (13 mph) |
| Swept Area | 1.07 m2 (11.5 ft2) |
| Rotor Diameter | 1.17 m (46 in) |
| Weight | 5.9 kg (13 lb) |
| Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
| Startup Wind Speed | 3.1 m/s (7 mph) |
| Voltage | 12, 24 and 48 VDC |
| Turbine Controller | Mircoprocessor-based smart controller |
| Body | Permanent mold cast aluminum |
| Blades | (3) Injection-molded composite |
| Alternator | Permanent magnet brushless |
| Overspeed Protection | Electronic torque control |
| Survival Wind Speed | 49.2 m/s (110 mph) |
| Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
| Wind Speed Operating Range | 3.1-22 m/s (7-49 mph) |
| Optimum Wind Speed Range |
4.5-22 m/s (10-49 mph) |
Ryse Energy Air Series Manual
The body of the Ryse Energy Air Breeze is constructed of permanent mold cast aluminum and the three blades are made of carbon molded composite.

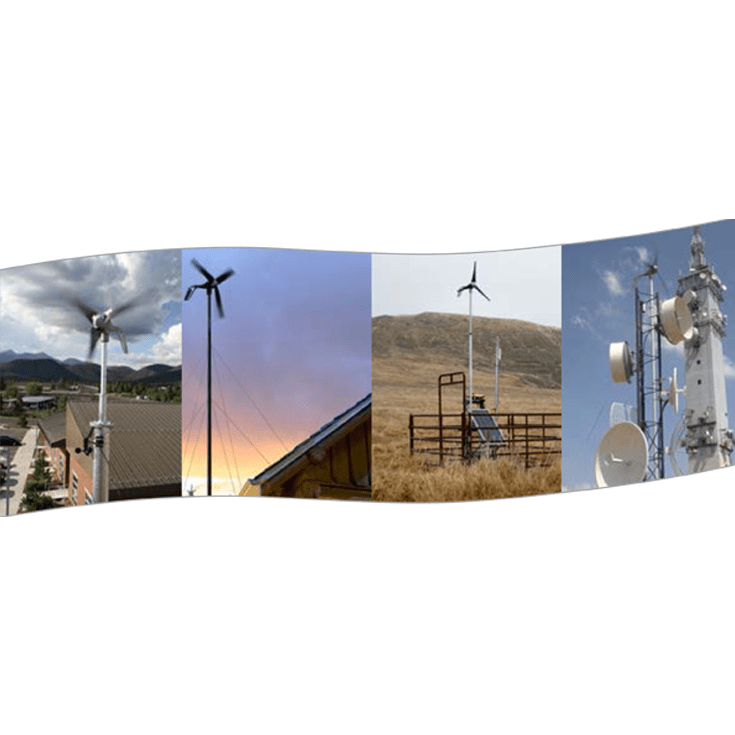

The generator can be used for multiple types of off-grid power applications including telecom, security systems, cabins, tiny homes, and trailers. It can also be used in conjunction with a solar system to supplement battery charging.
Requiring only a 7mph wind for startup, the AIR BREEZE will produce 40 kWh per month with an average wind speed of 13 miles per hour.
It comes with a built-in microprocessor controlled charge controller and the option of using an external load diversion controller.
The wind generator cannot be connected directly to a power inverter. It must be used to charge a 12-volt battery bank.
Your inverter will get its power from the batteries.
Comes with a 5-year manufacturer's warranty.
Ryse Energy Windpower Application Chart
Questions & Answers
Have a Question?
-
How many batteries will I need and what type
Deep cycle batteries are required (types include: flooded lead acid, absorbed glass mat (AGM), gel cell and NiCad.) for use with the Primus Windpower Air 40 Wind Turbine. IMPORTANT: Never use “automotive” batteries or any battery other than a “deep-cycle” battery. The number of batteries that you will need will vary depending on your usage. To calculate the number of batteries you will need, see page 11 of the downloadable manual on the product page. This formula will help you get the right number of batteries.
