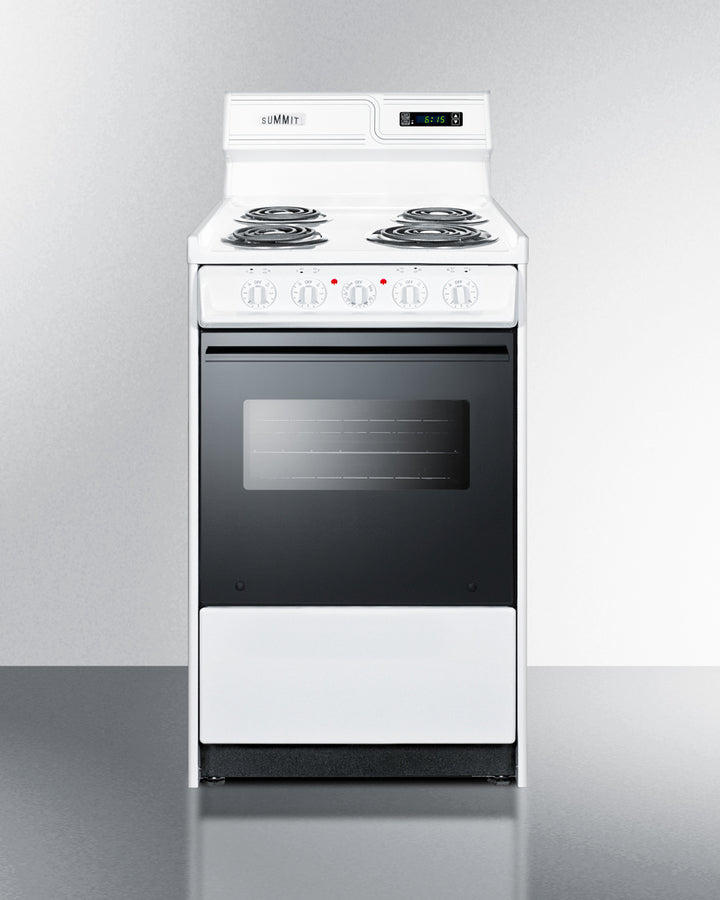

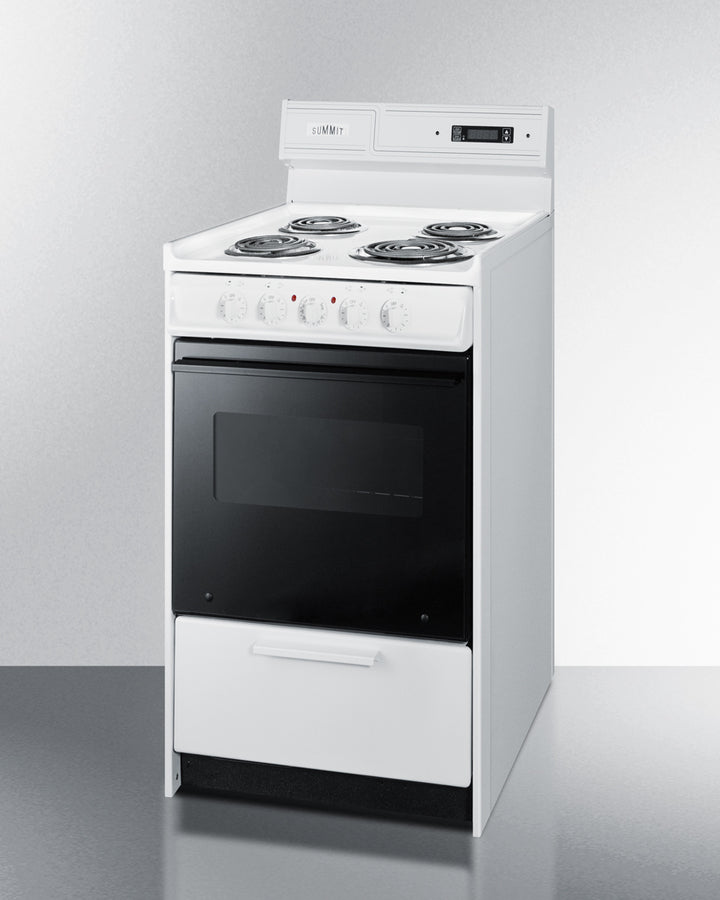

Summit 20" Wide Electric Coil Top Range

DESCRIPTION
The 23.2 amp design is ideal for kitchens with power limitations.

The WEM130DK is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. The black glass oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM130DK comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 25 or 30 amp 3 or 4-wire range cord can be installed by your electrician).

FEATURES
20" Wide Electric Range
Coil surface and full-sized oven ideal for smaller kitchens

Made in the USA
Designed and constructed domestically

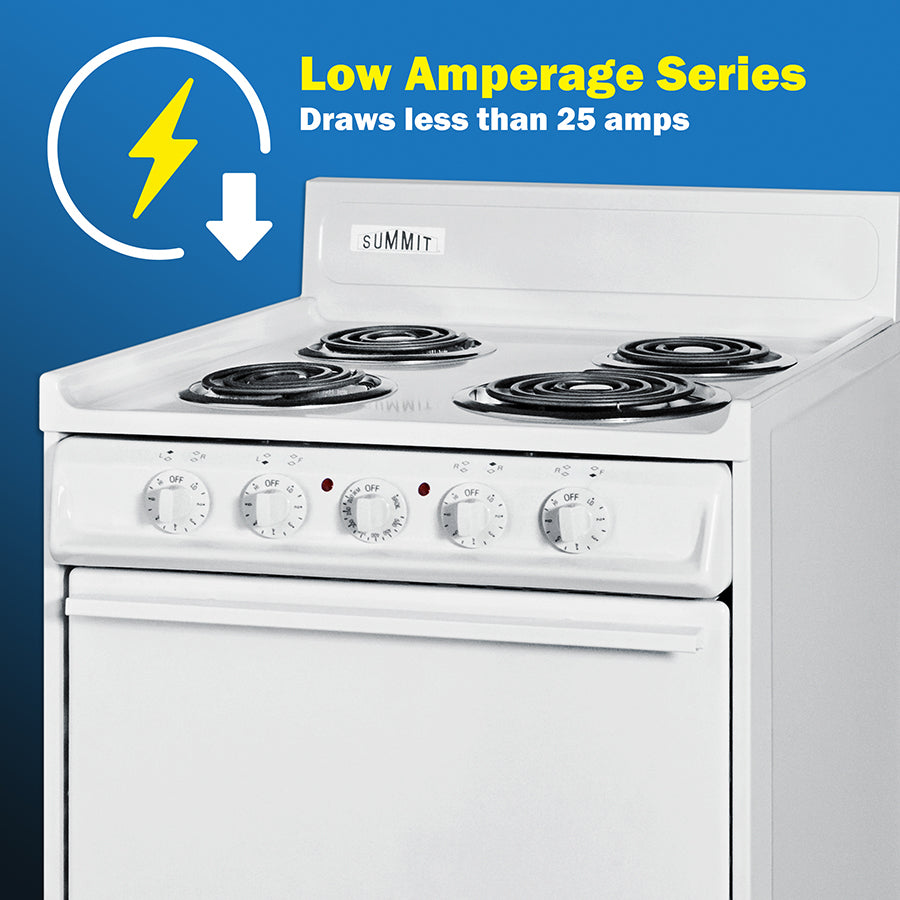

Low amperage
23.2 amp performance allows use with 25 or 30 amp breakers, ensuring full cooking performance in kitchens with limited power resources

24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens

Slim 20 inch width
Apartment-sized width offers all the functionality you need in a smaller footprint

Storage compartment
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Four coil elements
Three standard 6" and one large 8" element

Safety burners with low wattage outputs
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans
Each coil element includes a removable chrome pan for easier cleaning

Oven window and interior lighting
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Waist-high broiler
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

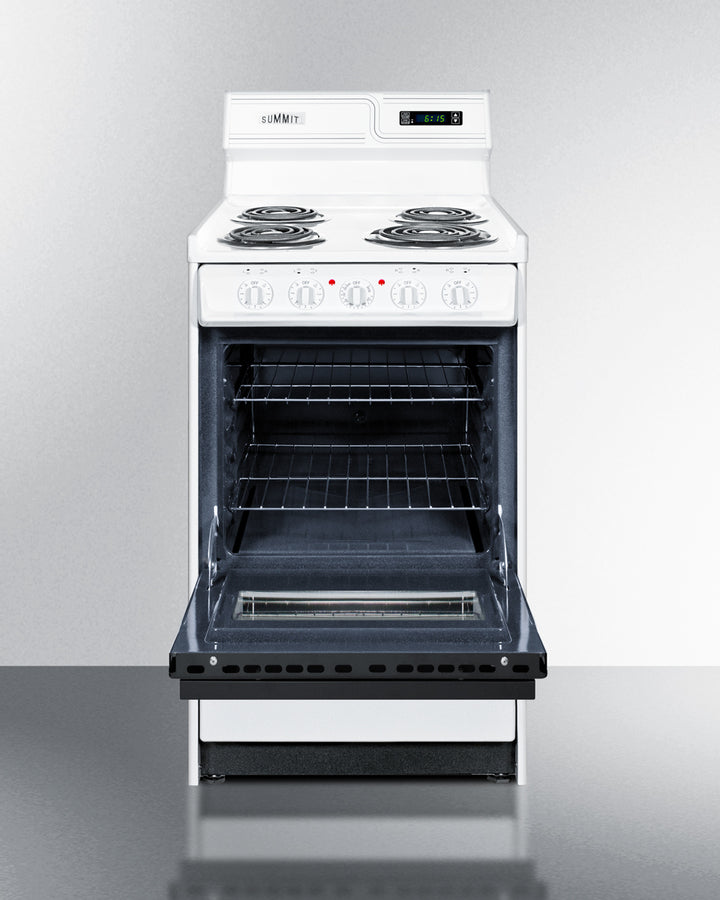

Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Recessed oven door in black glass
Smart design limits the depth and protects adjacent cabinets

Porcelain and steel construction
Solid construction built to hold up to everyday use

Deluxe backguard
8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer
Backguard includes clock and timer for added convenience

Upfront oven/burner controls
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn knobs
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Removable oven door and range top
Allows for easier cleaning as needed

Broiler tray included
Two-piece porcelain broiler tray with grease well

Anti-tip bracket
Included for user installation to help prevent tipping

Cord not included
Compatible with standard 25 or 30 amp 3 or 4-wire range cords

SPECIFICATIONS
Overview

• Nominal Height  -  44.0" (112 cm)
  Height of Cabinet   - 44.0" (112 cm)
  Nominal Width  -  20.0" (51 cm)
  Width  -  20.0" (51 cm)
  Nominal Depth  -  24.0" (61 cm)
  Depth  -  24.0" (61 cm)
  Door  -  Black
  Cabinet -   White
  US Electrical Safety   - CSA
  Amps   - 23.2
  Voltage/Frequency   - 220 V AC/60 Hz
  Weight  -  145.0 lbs. (66 kg)
  Parts & Labor Warranty  -  1 Year

  Electric Range
  Oven Capacity   - 2.46 cu.ft. (70 L)
  Cooktop Surface  -  Porcelain
  Element Type  -  Coils
  Number of Elements  -  4
  Element #1 Size   - 6.0" (15 cm)
  Element #1 Wattage  -  675.0
  Element #2 Size  -  6.0" (15 cm)
  Element #2 Wattage   - 675.0
  Element #3 Size  -  6.0" (15 cm)
  Element #3 Wattage  -  675.0
  Element #4 Size  -  8.0" (20 cm)
  Element #4 Wattage   - 950.0
  Burner Controls  -  Dial
  Oven Controls  -  Dial
  Oven Light  -  Yes
  Cooking Timer   - Yes
  Backguard   - Yes
  Backguard Display   - Yes
  Oven Window   - Yes
  Oven Interior Height   - 14.0" (36 cm)
  Oven Interior Width   - 16.0" (41 cm)
  Oven Interior Depth  -  19.0" (48 cm)
  Storage Compartment  -  Yes
  Broiler Location  -  Inside Oven
  Oven Door  -  Black Glass
