Klimaire 9000 BTU 19 SEER Ductless Mini Split WIFI Ready Full Kit

"What a great experience we had with Shop Tiny Houses I have told everyone to check them out. Very pleased." ~ Richard Bessette

Price
Regular price $840.00
Regular price $1,075.00 Sale price $840.00
Save $235
/
  • In Stock & Ready to Ship

9000 BTU 19 SEER 115 volt Ductless Mini Split WIFI Ready AC/Heat Complete Kit

Klimaire KSIV009-H119-S ductless mini-split heat pump 9000 Btu is a true zone control system. This system has numerous potential applications such as multifamily housing, tiny homes, cabins, or as retrofit add-ons to houses with non-ducted heating systems such as hydronic, radiant panels and space heaters.

They are a good choice where duct work installation is not feasible. Installs fast and easy. Over 30% savings can be achieved with this super high-efficiency system over a conventional on /off system.

They come with pre-flared installation kits, pre-charged outdoor units, and pre-vacuumed indoor units. This unit is integrated with DC Inverter technology which enables variable compressor speed, reducing the power usage to the minimum while keeping the indoor temperature steady and constantly controls the dehumidification process for better indoor air Quality and comfort.

This unit is designed with features to allow the unit to operate in winter temperature as low as 5ºF. The Sleek and attractive wall mounted indoor unit is whisper quiet and comes with a full-function remote control and built-in emergency MANUAL switch button for convenience and wall bracket for easy installation.

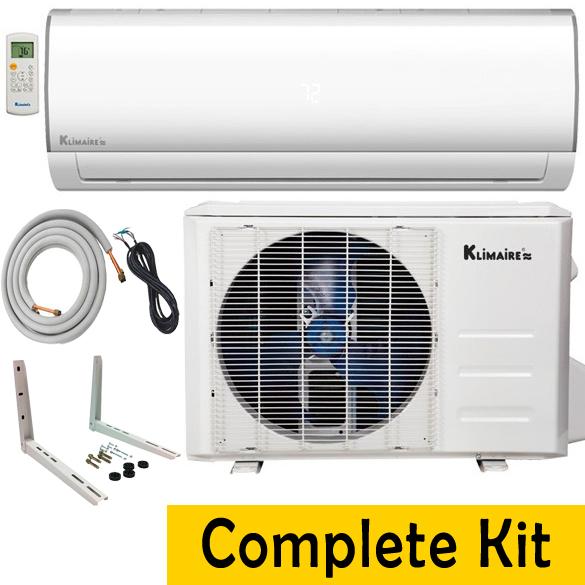

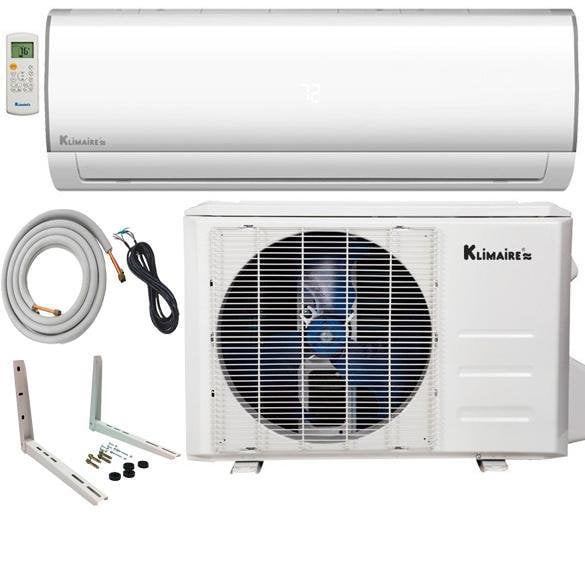

Klimaire 9000 Full Kit Includes:

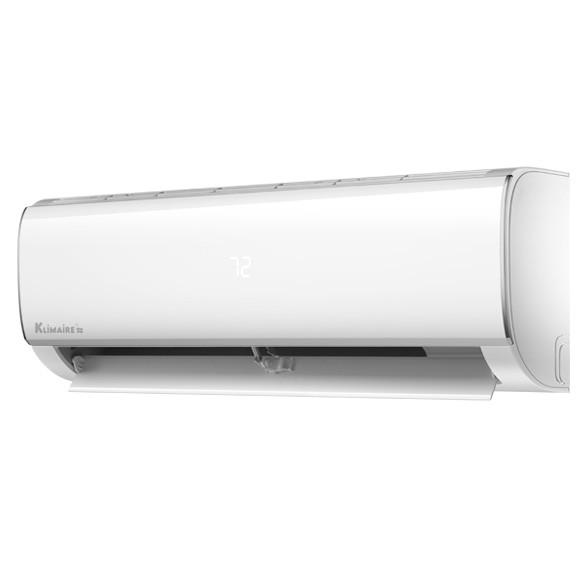

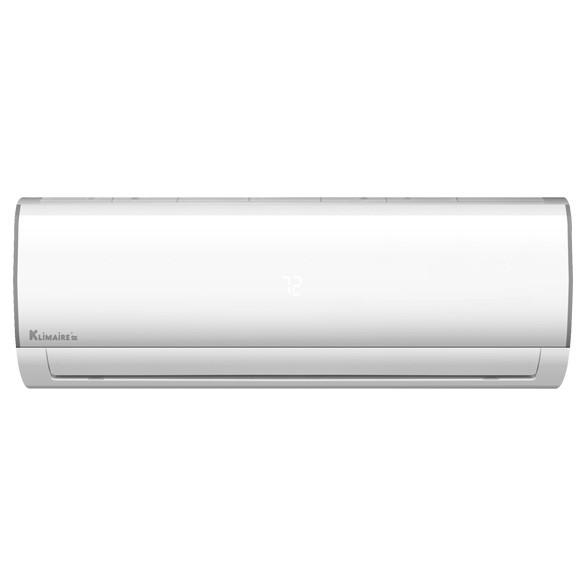

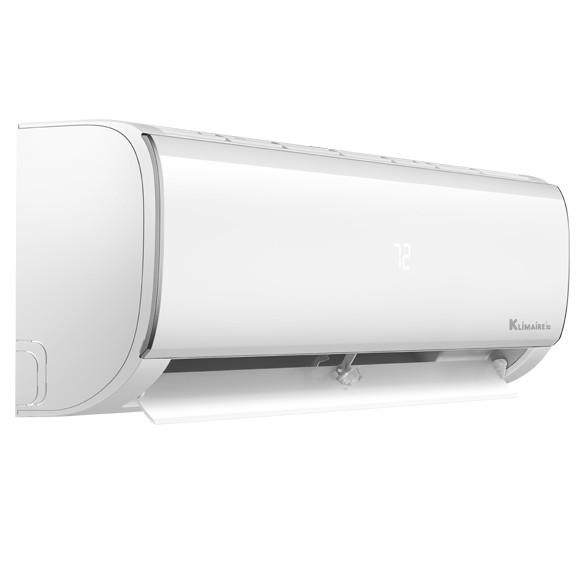

  • Indoor Unit

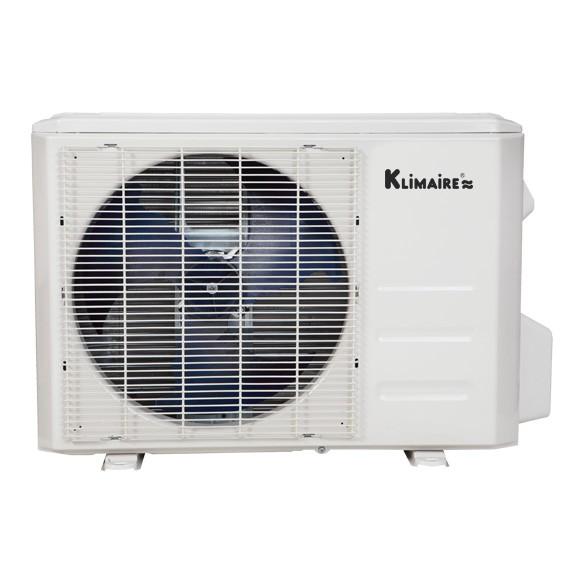

  • Outdoor Unit
  • Indoor Unit Mounting Bracket

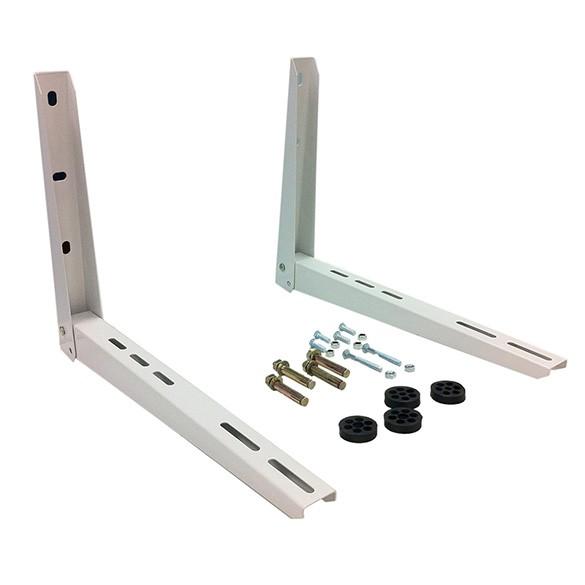

  • Outdoor Unit Wall Hanging Bracket

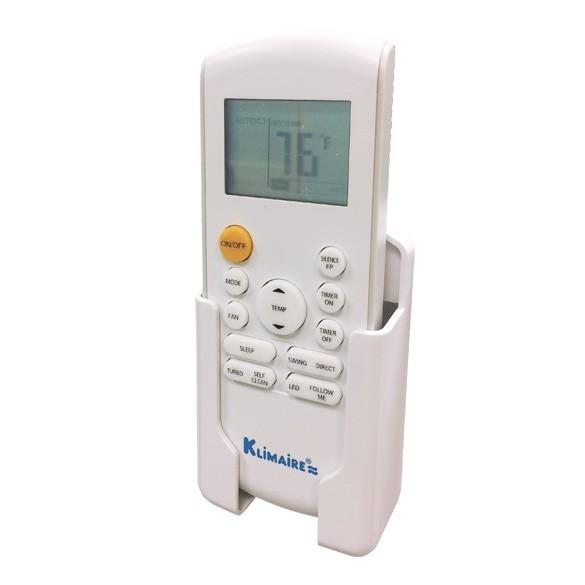

  • Remote Control w/wall holder
  • 15' Installation Kit w/insulated pipe


 Klimaire 9000 Key Features:

  • Remote Control - Unit comes with a remote control that allows the user to set custom control parameters. A wall remote holder is included. An optional wired wall thermostat can be plug-in easily for commercial or non remote control users.
  • Refrigerant Leak Detection - You can know when your unit is performing or not, it monitors and gives you the ability to check and be alerted about the performance of your unit; preventing damages to the compressor and automatically shuts off the unit.
  • Total comfort – Oscillating louver technology distribute air evenly throughout the room, precise air flow can be adjusted with 12 speed motor, different flap angles provide better air circulation for either heating or cooling, Silence operation enables the system to work in low frequency and indoor unit brings faint breeze, reduces noise level and creates quite and comfortable room for applications where noise reduction is vital.
  • Freeze protection – This function allows you to keep the room at 46ºF when you are away from home for a long time during heating season preventing freeze conditions in the room.
  • Dehumidification - Independent Humidity Control allows the unit efficiently dehumidifies with its dry mode function without changing the room temperature.
  • Sleep Mode - Helps to maintain the most comfortable temperature for a deep sleep and save more energy. Superior to the traditional one sleep model.
  • Self-diagnosis – Micro processor in the main electronic board performs a self-diagnostics and displays error codes to make maintenance simple.
  • Auto swing louver – The auto swing Louver function ensures that the air direction corresponds to the mode selected.
  • Auto-restart - After a power interruption when the power returns the unit will restart automatically at the previous function settings.
  • Anti-cold draft - If the ambient temperature is low and when the unit is turn on in heat mode; it will warm up prior to starting the fan operation to prevent a cold air blast to make people feel more comfortable.
  • Quick-Hook Design – The Indoor unit can be hung easier and faster on the newly designed mounting plate reducing installation time and easing service with additional gap for pipe installation as well as right to left adjustments.
  • Convenient for installation – Multi-refrigerant outlet pipe method: left/right/rear, more flexible for installation.
  • Extended heating can be achieved in ambient conditions as low as 5º F.
  • Low Ambient cooling available in ambient conditions as low as 5 º F applications require cooling during winter season.

    Questions & Answers

    Have a Question?

    Ask a Question
    • Can this unit be installed after the build? I'm going to try not having one for awhile after my build but if needed want to make sure it can be added

      So long as you are able to route your lines and wires, there's no reason you could not install this after your tiny house build is complete.

    • What is the hspf rating?

      The HSPF rating for this unit is a 10.

    • How many square feet does the smaller model heat and how many square feet does the larger model heat?

      The 9000 BTU unit heats a room between 350-400 sq feet. The 12,000 BTU unit heats a room between 450-550 sq feet.

    • What is the watt, amp, & volt consumption on this unit?

      115 V, 60 Hz. The rated current cooling mode is 8 amps. The rated current in heating mode is 8.6 amps. Max is 15 amps. The model draws 9,000 BTU/H for cooling capacity and 9,800 BTU/H for heating capacity.
